1 Overview

Scope of this document

This document provides the integration guidelines for interconnecting the AnywhereNow Dialogue Cloud services Voice over IP network between the customer Session Border Controller (SBC) and the AnywhereNow SBC.

For Voice call interactions, the Dialogue Cloud services are provided as an “add-on module” next to the Teams Calling service which is interconnected to the PSTN based on the Direct Routing Microsoft Teams integration.

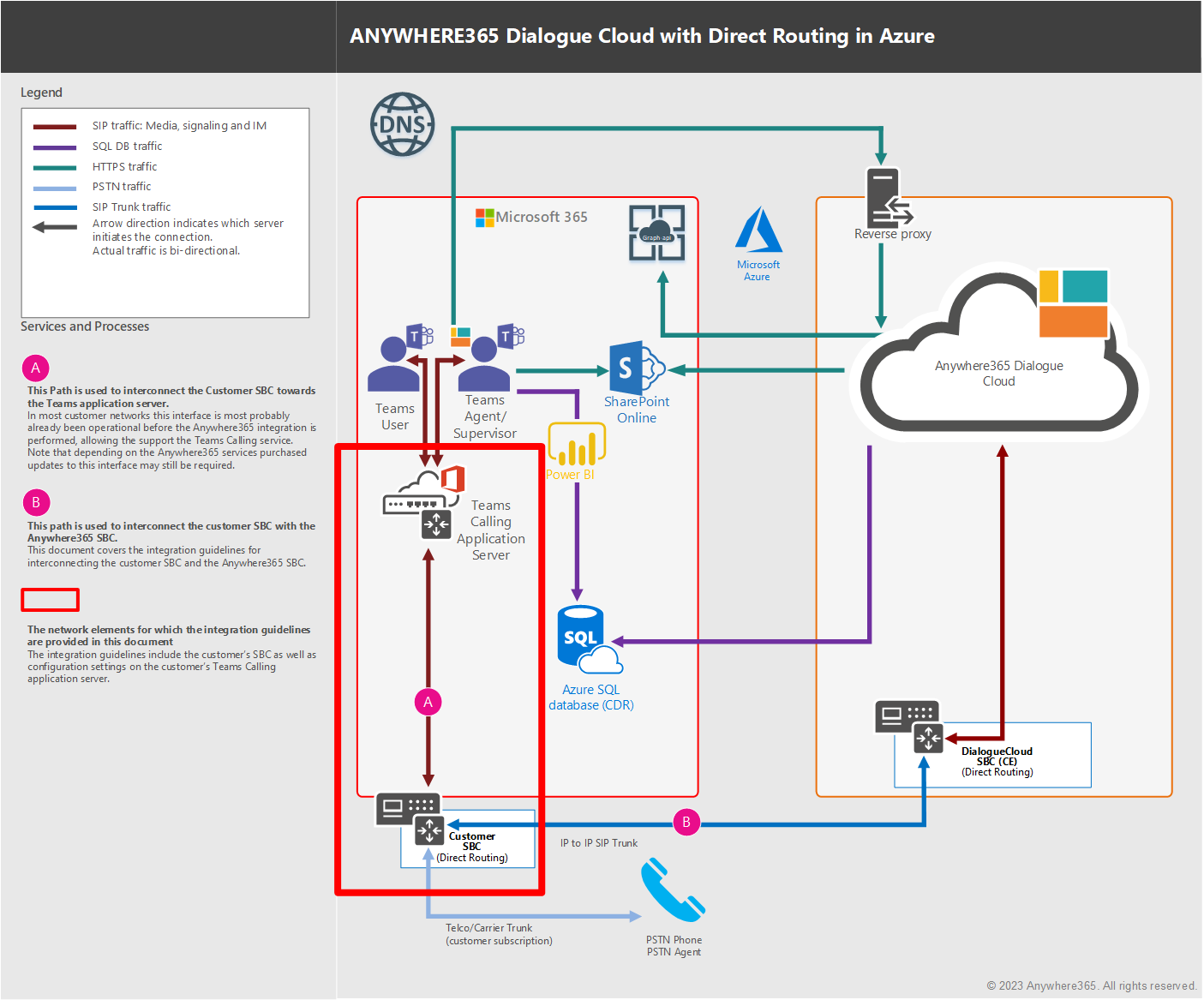

The following picture shows the high-level service architecture as well as the integration points covered in this document:

A diagram of a cloud Description automatically generated with low confidence

Figure 1 – The high level AnywhereNow service architecture and integration points
